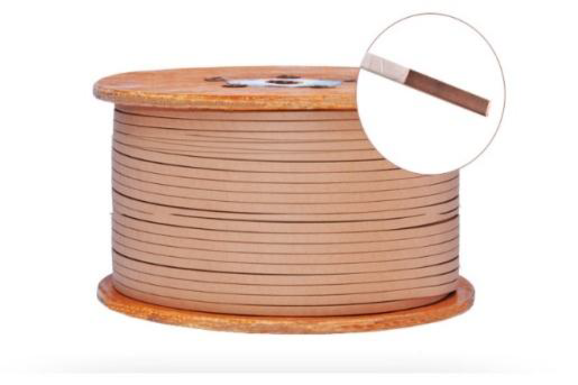

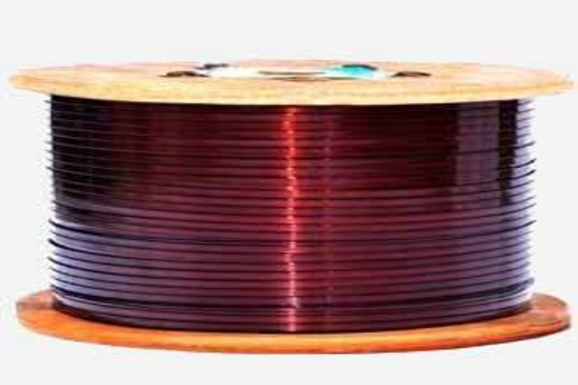

Rectangular Enamelled Copper/Aluminium Winding Wire (STRIPS)
Rectangular Enamelled Copper/Aluminium Winding Wire(STRIPS)

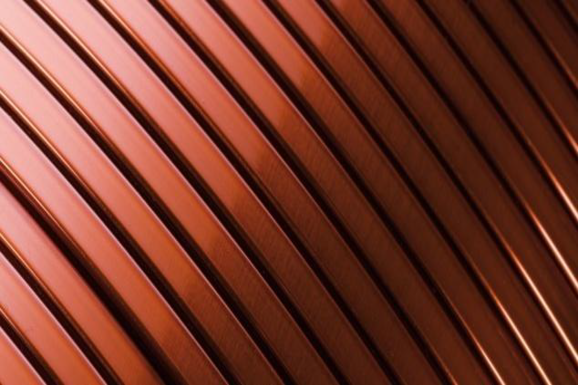

Enamelled Rectangular Copper Wires are used in low and medium voltage electrical machines such as motors, generators and transformers. The cross section of these wires ranges from 3.0 to 75.0 square millimetre with an insulation Class ranging from 105 to 220 degrees Celsius.
Rectangular Enameled Copper/Aluminum Winding Wire (STRIPS)
| Specification | Size Range | |
|---|---|---|
| Polyester Enameled Rectangular Copper/Aluminum Wire Class 155 | IS 13730-16 IEC 60317-16 |
Cross Sectional area 3 to 75 Sqmm Width 3 to 20 mm Thick 1 to 5 mm |
| Polyester Enameled Rectangular Copper/Aluminum Wire Class 180 | IS 13730-28 IEC 60317-28 |
Cross Sectional area 3 to 75 Sqmm Width 3 to 20 mm Thick 1 to 5 mm |
| Polyesterimide over coated with polyamide-imide Enameled Rectangular Copper/Aluminum wire Class 200 | IS 13730-29 IEC 60317-29 |
Cross Sectional area 3 to 75 Sqmm Width 3 to 20 mm Thick 1 to 5 mm |
Insulation Class
| Product Range | Thermal Class | Specification |
|---|---|---|
| Modified Polyester | 155 C | IS-13730-Part-16 |
| Polyesteramide | 180 C | IS-13730-Part-28 |
| Dual Coated | 200 C | IS-13730-Part-29 |
