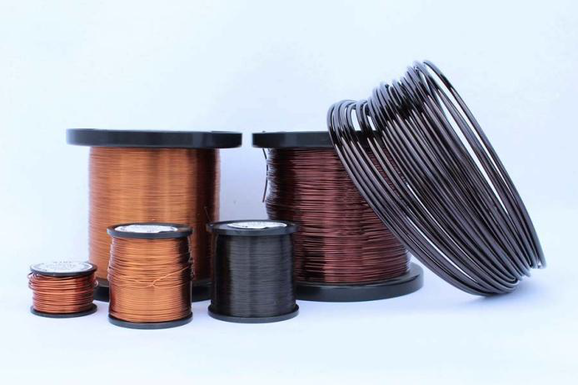

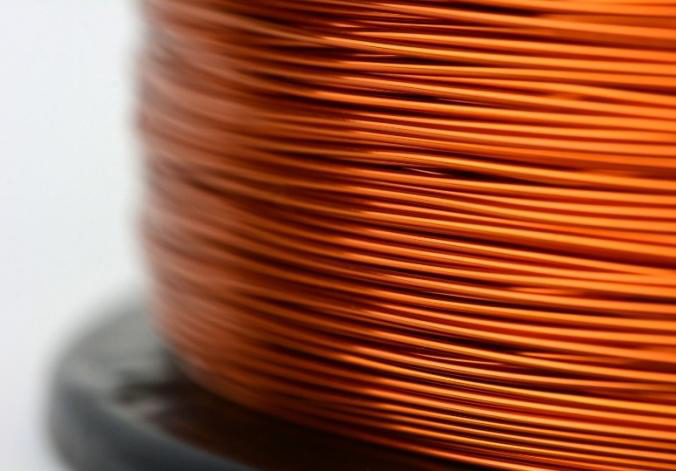

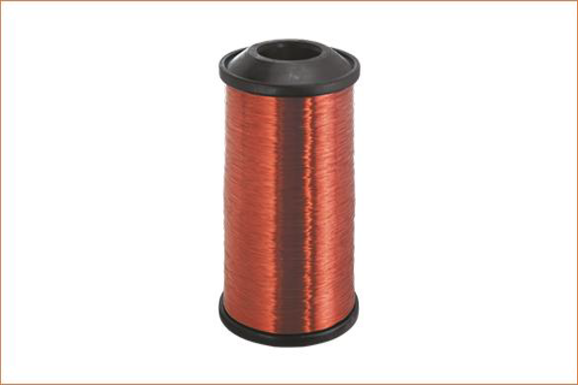

Round Enamelled Copper/Aluminium Winding Wire
Round Enamelled Winding Wires
CWC today manufactures a wide range of Enamelled Round Winding Wires for use in electrical machines such as motors, generators, transformers, house hold appliances, auto-electricals, electrical hand tools, refrigeration (hermetic) motors, fans, switchgears, coils and relays, ballasts and etc.
Round Enameled Copper/Aluminum Winding Wire
| Specification | Size Range | |
|---|---|---|
| Polyesterimide over coated with polyimide-imide enameled Round Copper/Aluminum Wires, Class 200 | IS 13730/IEC 60317 Part 13 : 1993 |
8 swg to 43 swg 4.06 mm to 0.091 mm |
| Polyesterimide enameled Round Copper/Aluminum Wires, Class 180 | IS 13730/IEC 60317 Part 8 : 1996 |
8 swg to 43 swg 4.06 mm to 0.091 mm |
| Modified Polyester enameled Round Copper/Aluminum Wires, Class 155 | IS 13730/IEC 60317 Part 3 : 1996 |
8 swg to 43 swg 4.06 mm to 0.091 mm |
| Self-Solder able Polyurethane Enameled Round Copper/Aluminum Wire, Class 155 | IS 13730/IEC 60317 Part 20 : 1993 |
14 swg to 43 swg 2.032 mm to 0.091 mm |
| Self Solderable Polyurethane Enameled Round Copper/Aluminum Wire, Class 180 | IS 13730/IEC 60317 Part 23 |
14 swg to 43 swg 2.032 mm to 0.091 mm |
| Self Solderable Polyurethane Enameled Round Copper/Aluminum Wire, Class 220 Wires. | IS 13730/IEC 60317 Part 57 |
8 swg to 36 swg 4.064 mm to 0.200 mm |
Insulation Class
| Product Range | Thermal Class | Specification |
|---|---|---|
| Modified Polyester | 155 C | IS-13730-Part-3 |
| Polyesteramide | 180 C | IS-13730-Part-08 |
| Dual Coated | 200 C | IS-13730-Part-13 |
| PAI | 220 C | IS-13730-Part-57 |
| Self Solderable | 155 C & 180 C | IS-13730-Part-20 & 23 |
